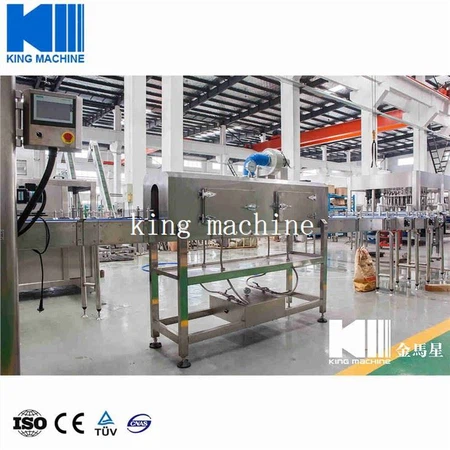

This shrink sleeve labeling applicator function is for PVC label shrink on the bottle ,used for beverage bottle package solution ,international advanced technology ,cover the circle label on PET bottle ,And then hot shrinking to fix on the position which bottle body designated.The machine's structure is compact,and suitable for the production line of different direction and different height ,The machine part adopts combination designing of modularization ,and make the machine reasonable ,the height adjustment adopts motors fluctuating,it is convenient to replace the material ,The special cutter head designing ,make the film rolling cut more exactly and reliably.

Pošlji povpraševanje

Predstavitev izdelka

Avtomatski stroj za nanašanje etiket z dvojno glavo

In order to meet the higher requirements of domestic and foreign markets,our company has developed a double heads / sleeve structure which can label the bottble neck and bottle body by one-through operation. It adopts equivalent PLC, positioning module, servo motor and
frequency converter. its touch screen is featured with a humanized operation.

En stroj deluje učinkoviteje kot 2 navadna stroja za etiketiranje.
It not only saves the cost of a sleeve label machine, but also proves to be more cost effective for our clients;
It reduces the length of conveying line and avoids the secondary transporlalion,
And it is an ideal space-saving solution and increases the production efficiency .
Zmanjša zaplete v procesu in poveča kakovost izdelka.

Opis		Stroj za nalepke s skrčljivimi rokavi z dvojno glavo
model:		KM-600
moč	(kw)	4
Voltage	(v)	3,380/220VAC
Product speed	BPH	24000
Uporabni premer telesa steklenice	(mm)	Ф28 -Ф125
Veljavna dolžina etikete	(mm)	30 250
Veljavna debelina etikete	(mm)	0.035 0.13
Ustrezen notranji premer papirne cevi	(mm)	7578(5"10") adjust freely
Velikost gostiteljskega stroja	(mm)	3600L1400W2200H
Utež	(kg)	600
